10.1 Inch Android AIO
  • 10.1 Inch Android AIO - 0 10.1 Inch Android AIO - 0
  • 10.1 Inch Android AIO - 1 10.1 Inch Android AIO - 1
  • 10.1 Inch Android AIO - 2 10.1 Inch Android AIO - 2
  • 10.1 Inch Android AIO - 3 10.1 Inch Android AIO - 3
  • 10.1 Inch Android AIO - 4 10.1 Inch Android AIO - 4

10.1 Inch Android AIO

We supply 10.1 inch android AIO (All In One) in high quality with CE FCC RoHS under one-year warranty. Based on 11 years' OEM/ODM services for Android tablets & laptops, and 30 R&D engineers & 8 dust-free assembly lines & 150 staff, our products have been covering most of European,American and African market. We are expecting become your long term partner in China......

Send Inquiry

Product Description

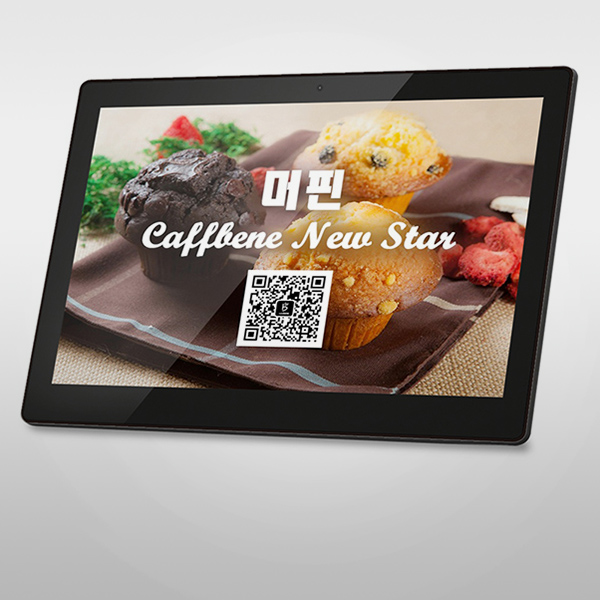

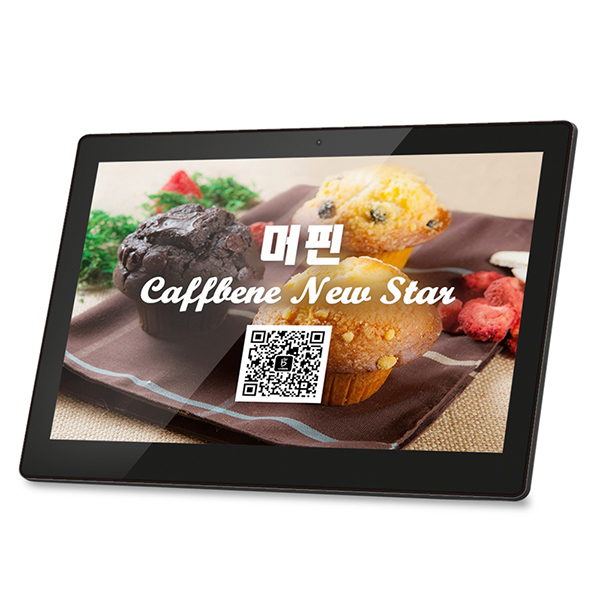

1.Introduction of 10.1 Inch Android AIO

This 10.1 inch android AIO (All In One) is an industrial panel pc , IPS Screen ensures wide viewing angles. High speed Mutil cores CPU processor. All of the electronics components are based on industrial quality. Multi-purpose interface.

TPS1020T -10.1 inch android AIO

●CPU:A33/A64/A83/RK3126/RK3328/RK3368/RK3399 /MT8163/MT8167/MT8173/MT8176  Quad Core Cortex [email protected] 64Bits

●OS: Andriod OS  6.0-7.0-8.0 - 8.1-9.0

●LCD module: 10‘‘1280*800/1920*1200   IPS Screen

●RAM:1GB/2GB

●Hard Disk: 8GB/16GB/32GB Nand Flash
●Network WIFI 802.11b/g/n

Ethernet Supports connection to the RJ45 network interface

Bluetooth Bluetooth 4.0

3G/4G Support external 3G/4G USB dongle


2.Parameter (Specification) of 10.1 Inch Android AIO



Display

Screen

10.1 inch IPS screen



Resolution

1280×800/1920*1200 IPS



Brightness

350 cdm2



Contrast

1000



Screen scale/Display area

16:10/ Display area : 218×135mm



Configuration

CPU

RK3368  eight core processor, clocked 2.0G



RAM

1GB/2GB



ROM

8GB/16GB



System

Android 6.0/7.0



Network

WIFI

802.11b/g/n



Ethernet

Supports connection to the RJ45 network interface



Bluetooth

Bluetooth 4.0



3G/4G

Support external 3G/4G USB dongle



Jack

SD

1×SD card slots (max support 32GB)



Mini USB

1×USB OTG (through it to debug the machine, brush the system program)



USB 2.0

3×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)



RJ45

1×RJ45 network interface



Earphone

1×3.5mm headphone jack



Power

1×4.0mm power DC jack



Multi-Media

Video

Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)



Audio

Support MP3, WMA, AAC and so on




JPEG、JPG



Other parameters

Wireless mouse keyboard

Support



Speaker

2×2W speakers



Camera

Standard 200W pixel camera (500W pixel camera optional)



OSD language

Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations



Software support

Free installation applications (maps, games, e-mail, self developing apps, etc.)



Attachment

Adapter

One, specifications: 5V/2A or 12V/1A



Desktop Bracket

One



Remote control

No



User‘s Manual

One



Theft proof cover plate

One, (can cover insert devices, such as U disk or SD card, to prevent theft)

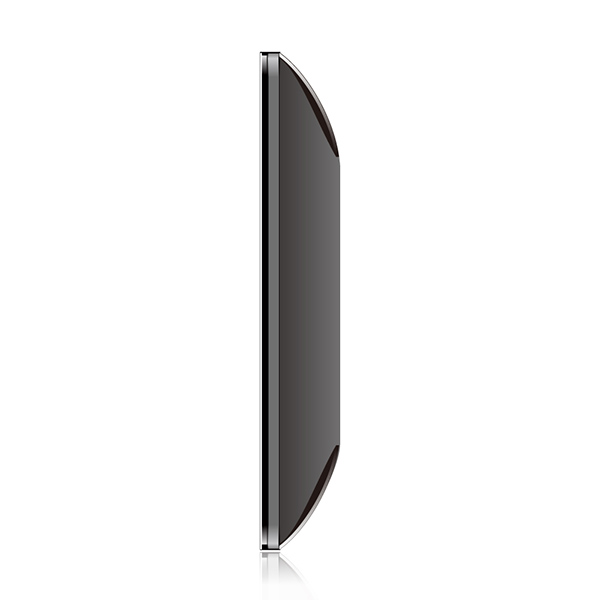

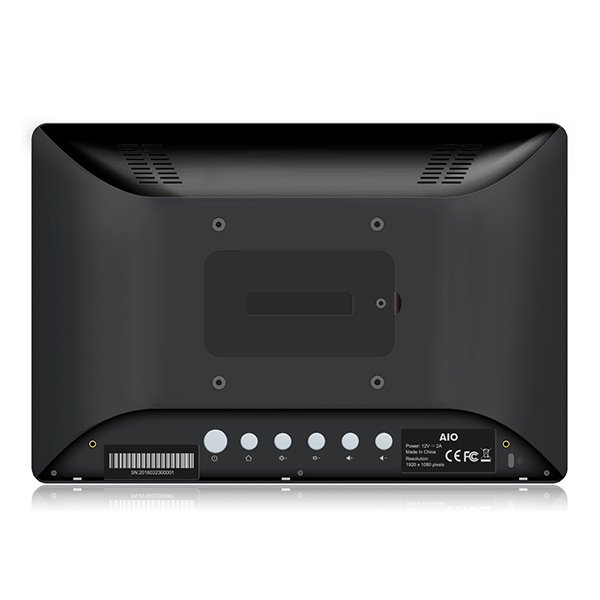

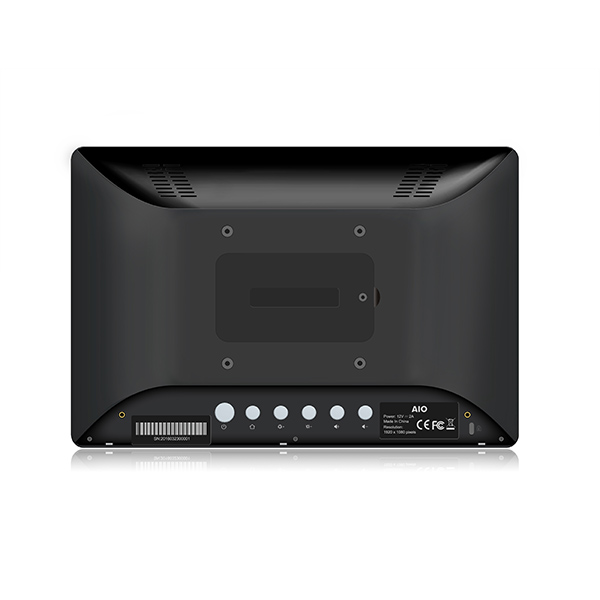

3.Details of 10.1 Inch Android AIO

TPS1020T -10.1 inch android AIO

10.1 Inch Android AIO


4.Product Qualification

10.1 Inch Android AIO10.1 Inch Android AIO


5.Deliver,Shipping And Serving

10.1 Inch Android AIO10.1 Inch Android AIO


6.FAQ

Q: Are you a factory? What products do you supply with?

A: Yes, we are factory of consumer electronics products for more than 10 years. We produce and provide different range of product on laptop, and tablet pc.

Q: Can you print customers’logo on the products? And supply customized package ?

A: Yes, welcome OEM/ODM orders. Our MOQ is 1,000 pcs. We can add your logo on the products include samples order for free. We supply customized services.

Q: How long will you feedback our inquiries?

A: We supply 24 hours service. Please feel free contact us at any time. Your inquiry will be responded within 5 hours. If urgent, please contact us via mobiles, email, Skype , Wechat, etc.Business working days: from Sunday to Saturday

Q.Can I order a sample to check the quality?

A. Yes! Welcome order a sample to check the quality and functions before bulk order.Sample fees will be refunded in your next bulk order.



Hot Tags: 10.1 Inch Android AIO, Wholesale, Customized, In Stock, China, Suppliers, Manufacturers, Factory, Cheap, Discount, CE, Newest, Latest Selling
